Basic Information
Certification
CE, ETL, RoHS, SAA
Input Voltage
AC 220V-240V/48V DC

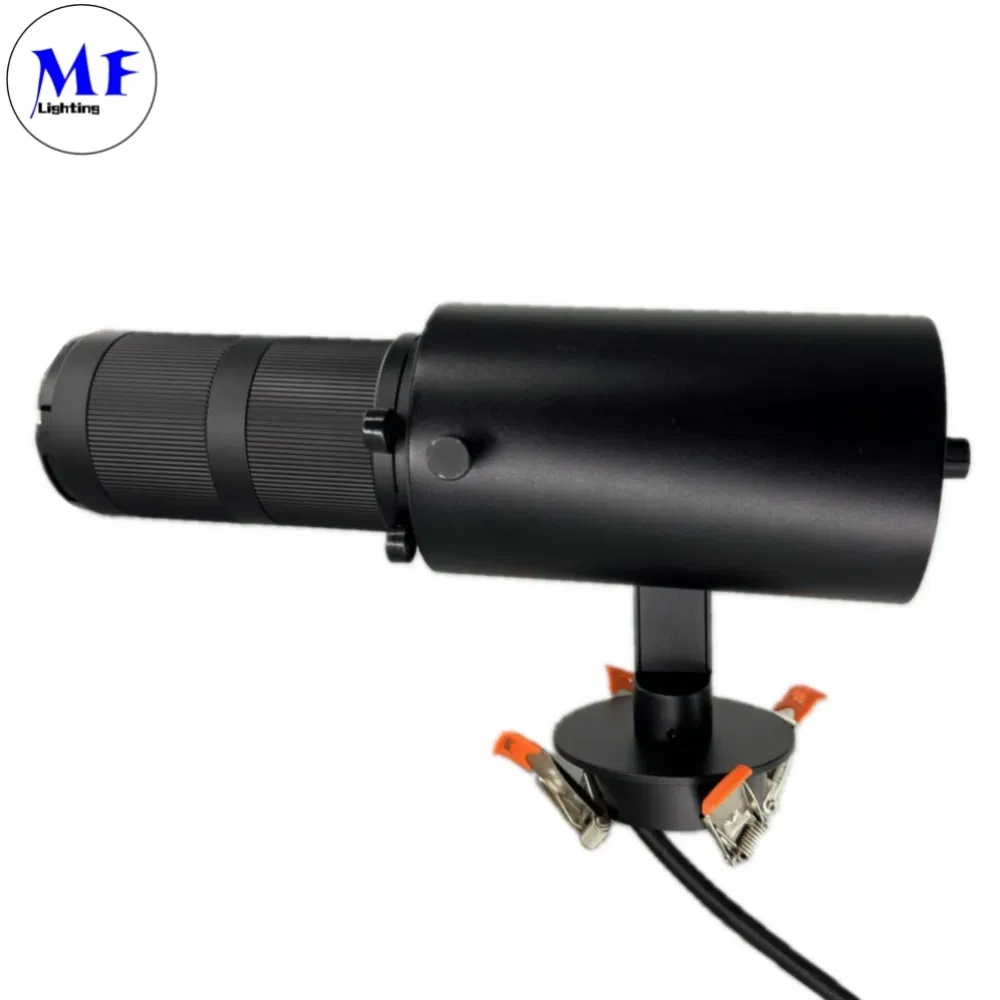

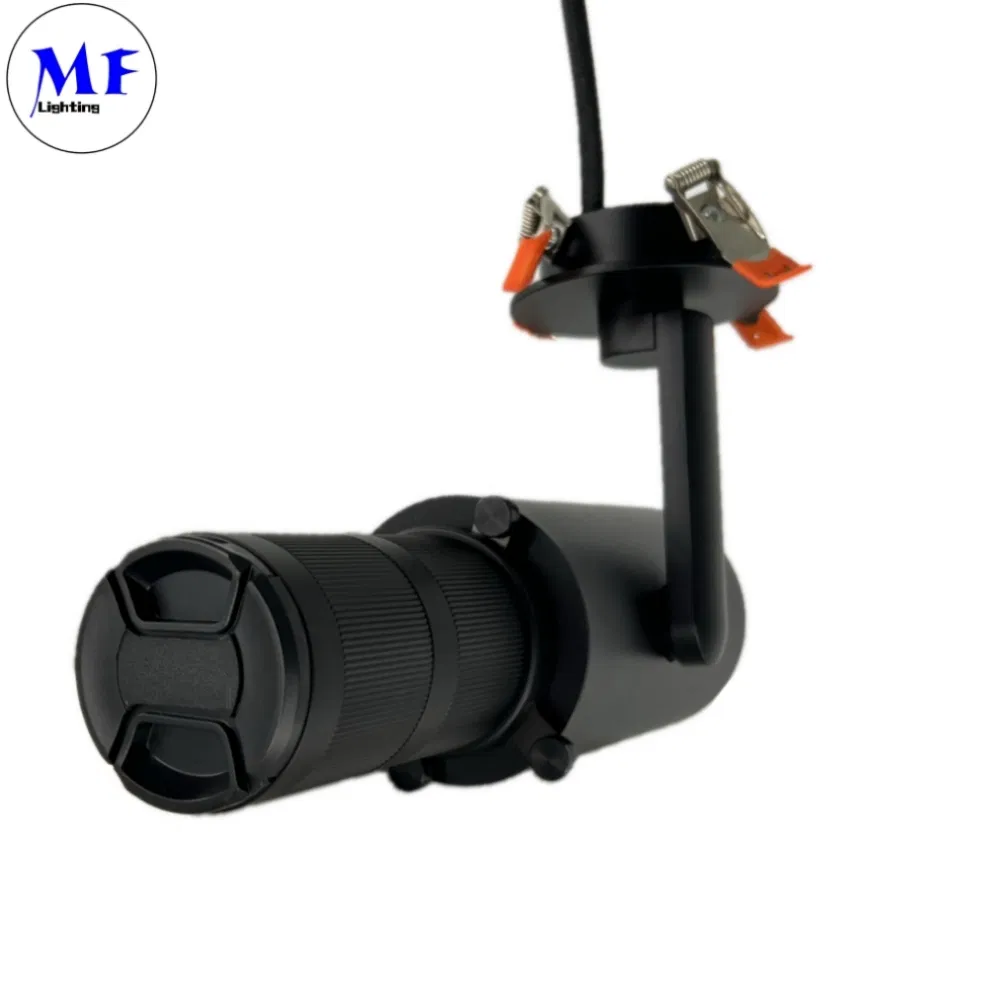

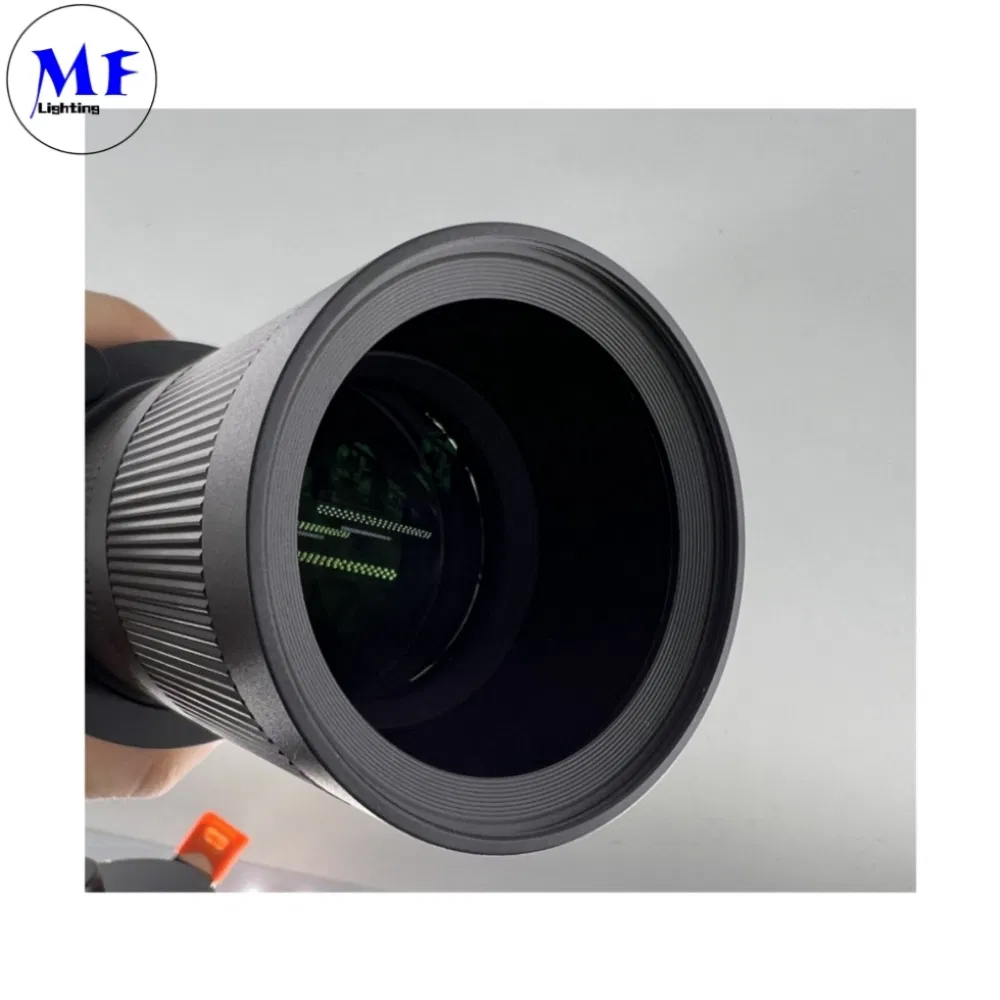

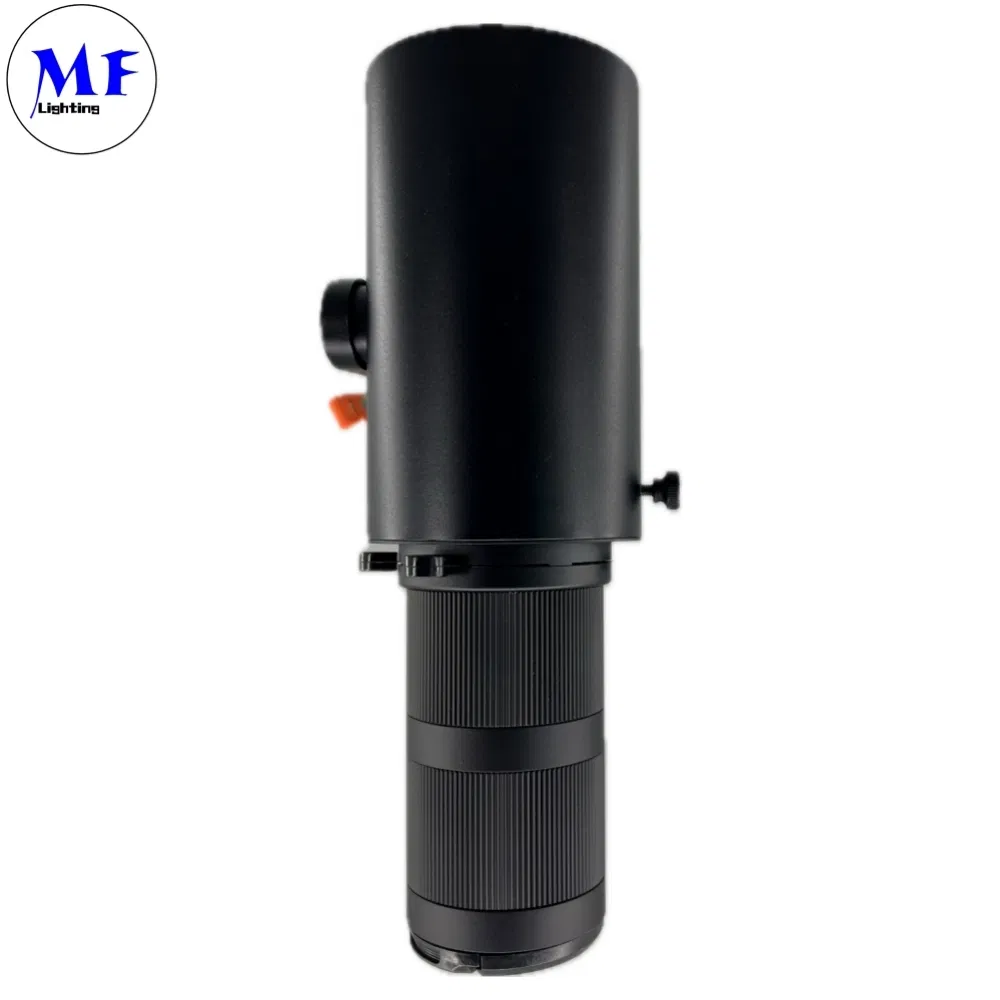

High CRI 97 LED Shapeable Track Spot Light
Zoomable CCT Power Dimming Art Museum Magnetic Gobo Projector. Available in 10W, 28W, and 37W variants.
Main Features
- Ultra-high-definition projection: Equipped with newly developed wide-angle and constant zoom optical lenses.
- Precise Spot Shaping: Millimeter-level precise spot shaping with uniform illumination.
- Optical Versatility: Fixed-focus and zoom lenses can be switched arbitrarily to maximize optical properties.

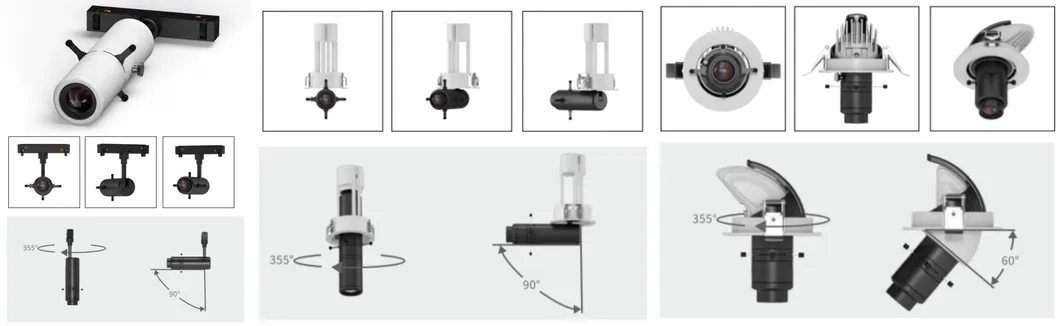

- Flexible Adjustment: Supports vertical 60°/355° rotation and horizontal 355° rotation for precise projection.
- Smart Control: Supports MIJIA / TUYA Bluetooth, DALI, Zigbee, and 1-10V dimming.
Technical Specifications
| Model |
Power |
Luminous flux |
Ra |
Color Temp |
Zoom Range |
G.W. |
Casing Color |
| M1003K | 10W | 300~350LM | ≥97 | 2700K-4000K | 15°~36° | 0.35Kg | Black/White |
| D1070K | 10W | 300~350LM | ≥97 | 2700K-4000K | 15°~36° | 0.49Kg | Black/White |
| G1075K | 10W | 300~350LM | ≥97 | 2700K-4000K | 55° | 0.49Kg | Black/White |
| G2095K | 20W | 850~900LM | ≥97 | 2700K-4000K | 15°~36° | 0.35Kg | Black/White |
| G30125K | 28W | 1100~1300LM | ≥97 | 2700K-4000K | 15°~36° | 0.35Kg | Black/White |

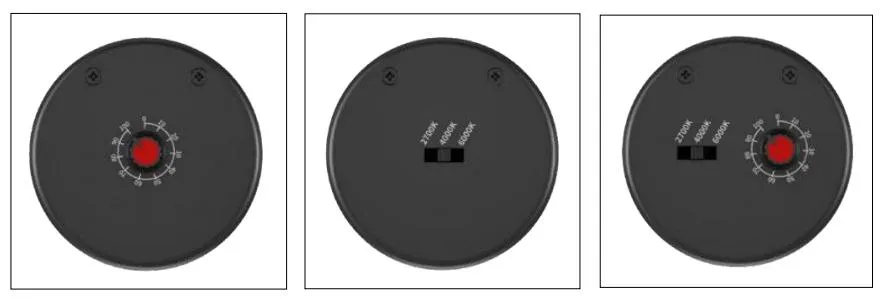

Functions & Control

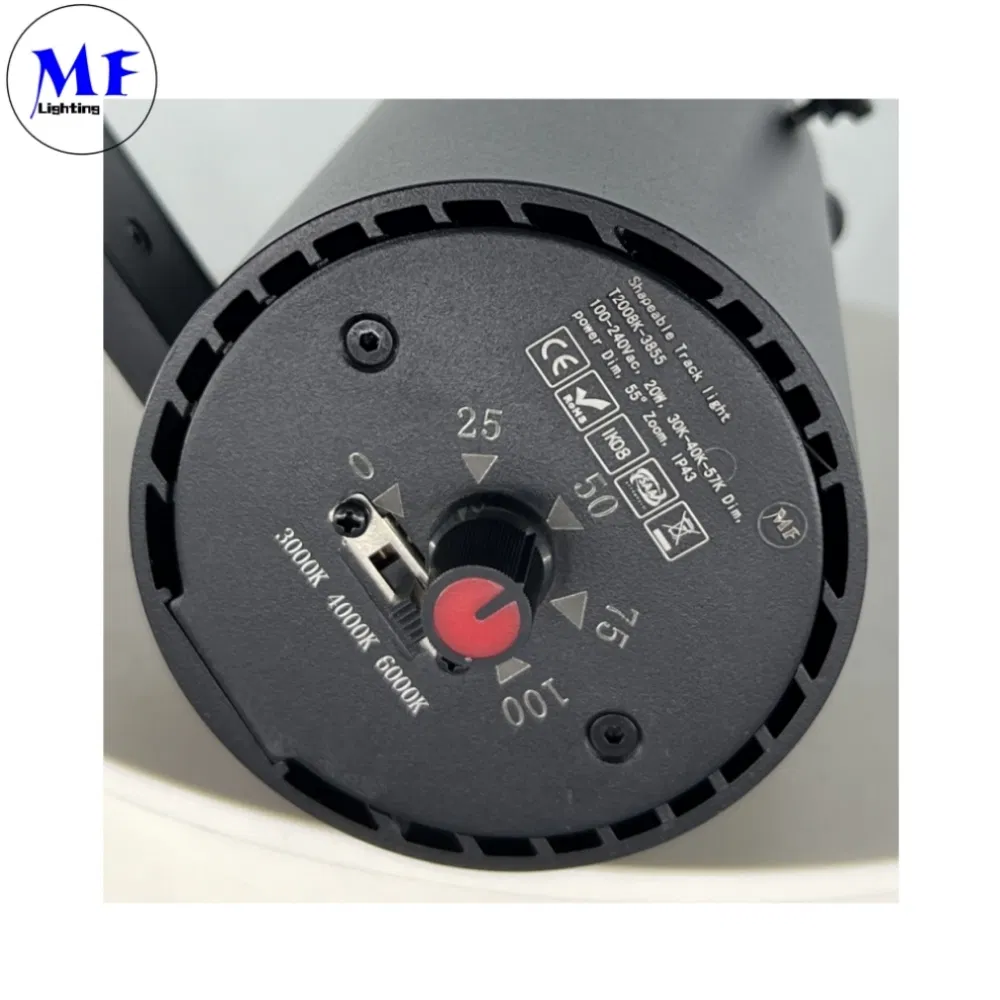

The module built-in driver supports various control methods:
a. Single lamp 0-10V knob dimming module for continuous adjustment.
b. DIP switch for color temperature selection (2700K/4000K/6000K).
c. Combined DIP CCT + 0-10V knob dimming.

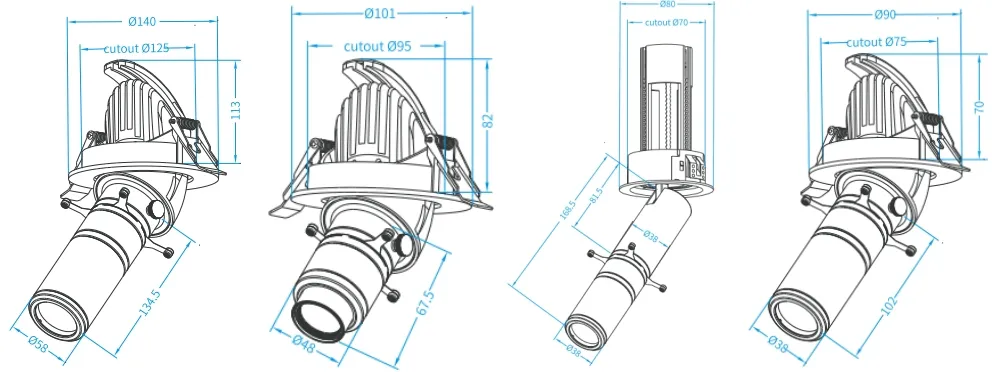

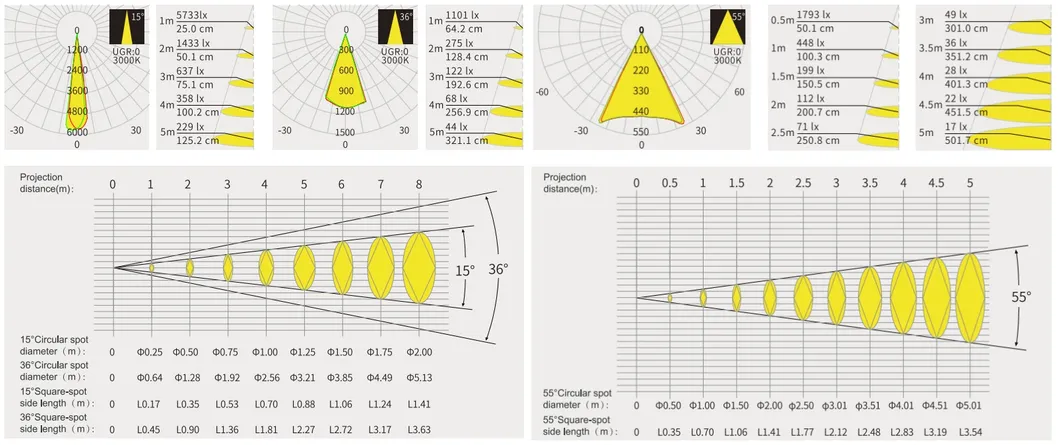

Dimension & Photometry

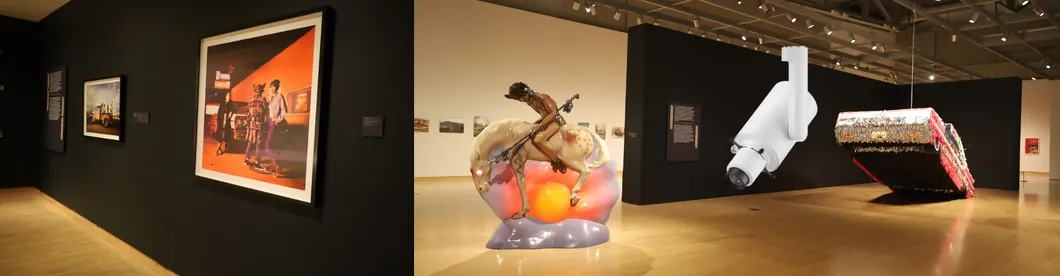

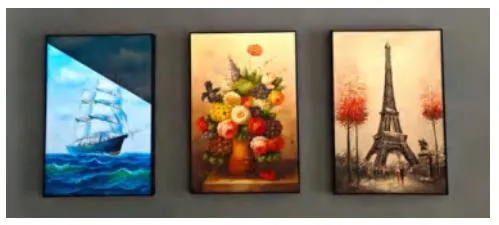

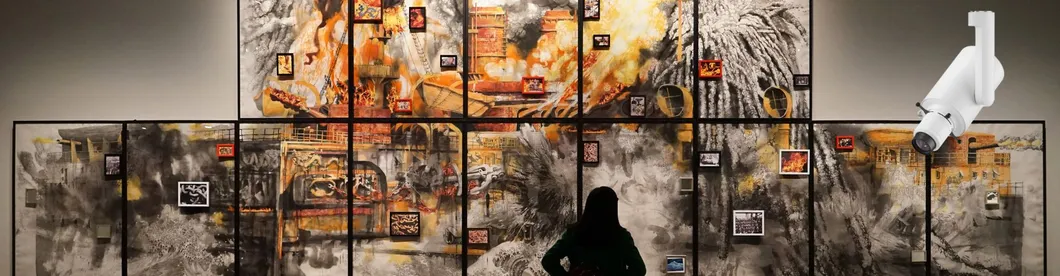

Professional Applications

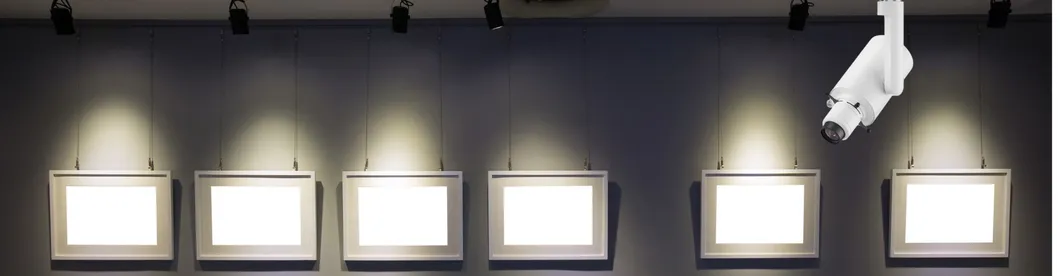

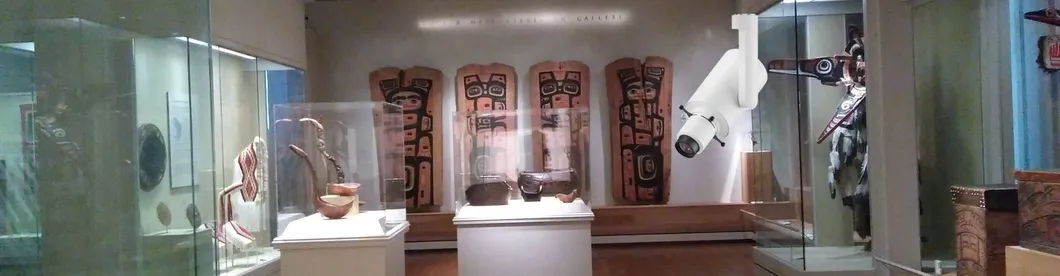

LED track lights find extensive application in galleries and art museums, playing a crucial role in illuminating and accentuating artwork. With precision lighting capabilities, these lights enhance the visual experience, bringing out details, textures, and colors.

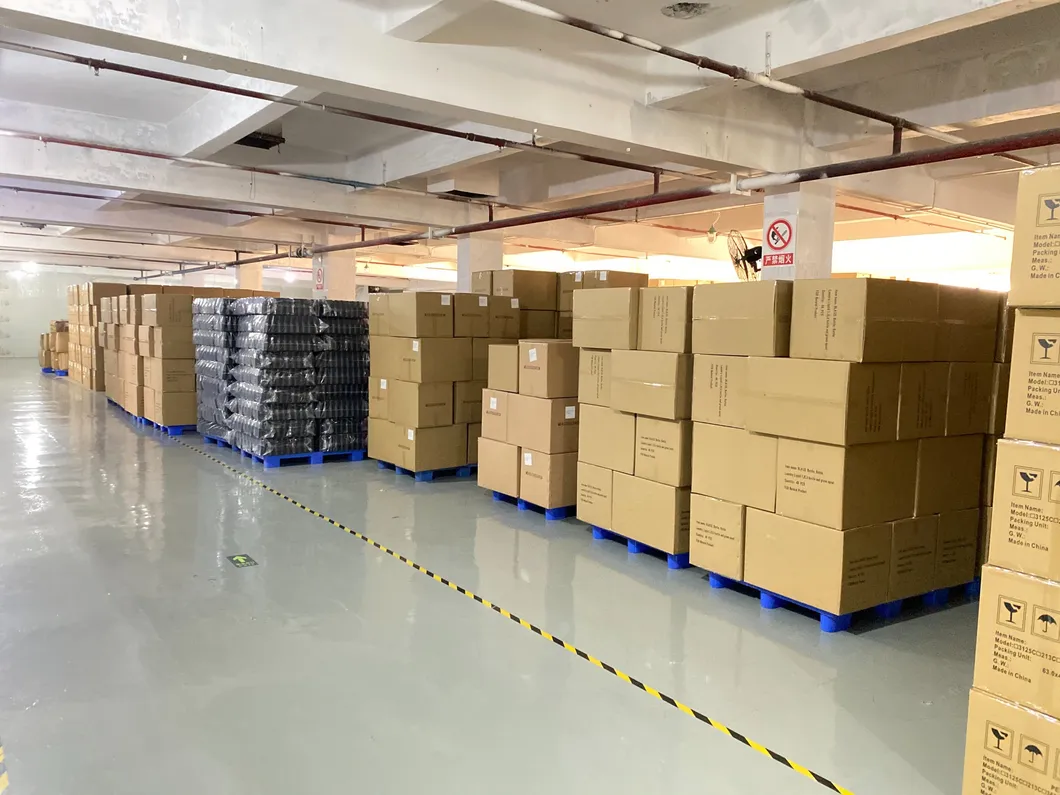

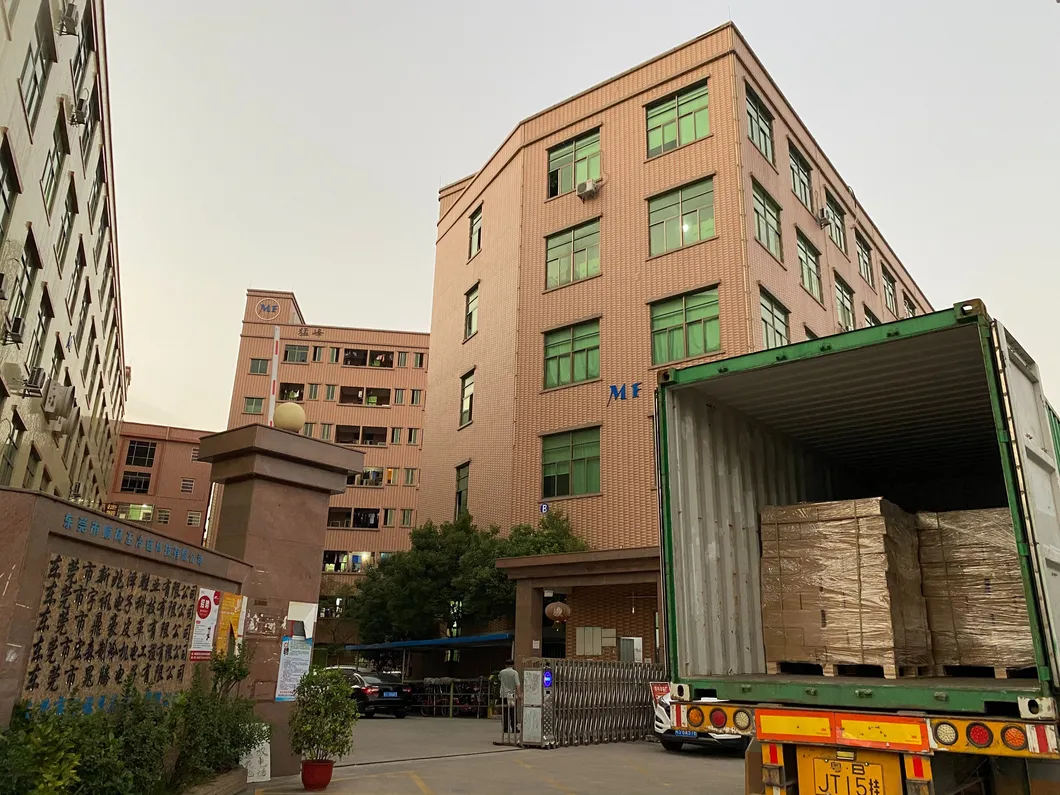

Packaging & Shipping
Frequently Asked Questions
What makes this track light suitable for art museums?
The light features a high CRI (Ra ≥ 97), which ensures that colors appear vibrant and true to life. Its shapeable spot and zoomable lens allow curators to perfectly frame artwork without spill light.
Can the beam angle be adjusted after installation?
Yes, the KP series features a zoomable lens with a range of 15° to 36°, allowing you to adjust the focus and beam size according to the display requirements.
What dimming protocols are supported?
It supports a wide range of control protocols including 0-10V, DALI, Bluetooth (TUYA/MIJIA), and Zigbee, providing flexible integration with most smart building systems.
What are the installation options?

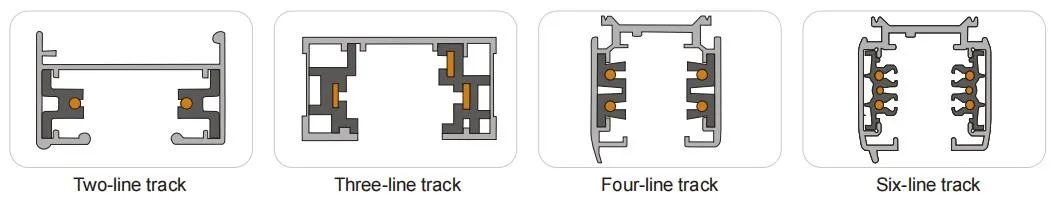

This series supports multiple installation methods: Magnetic track, Embedded (cutout 40/70mm), Surface Mount, and standard Track Adapters.
Does the light produce "blue edges" or distortion in the spot?
No, the II generation optical system ensures a dust-free focal length with no distortion and no blue edges, even when switching between sharp and soft light states.
Is it possible to project specific shapes or patterns?

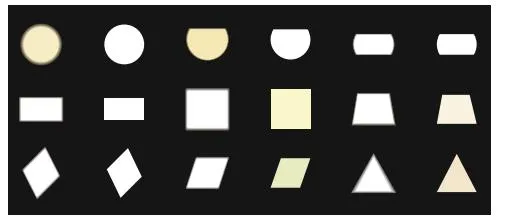

Yes, the fixture supports GOBO projection and frame shaping, allowing you to create square, rectangular, or custom-patterned illumination.
