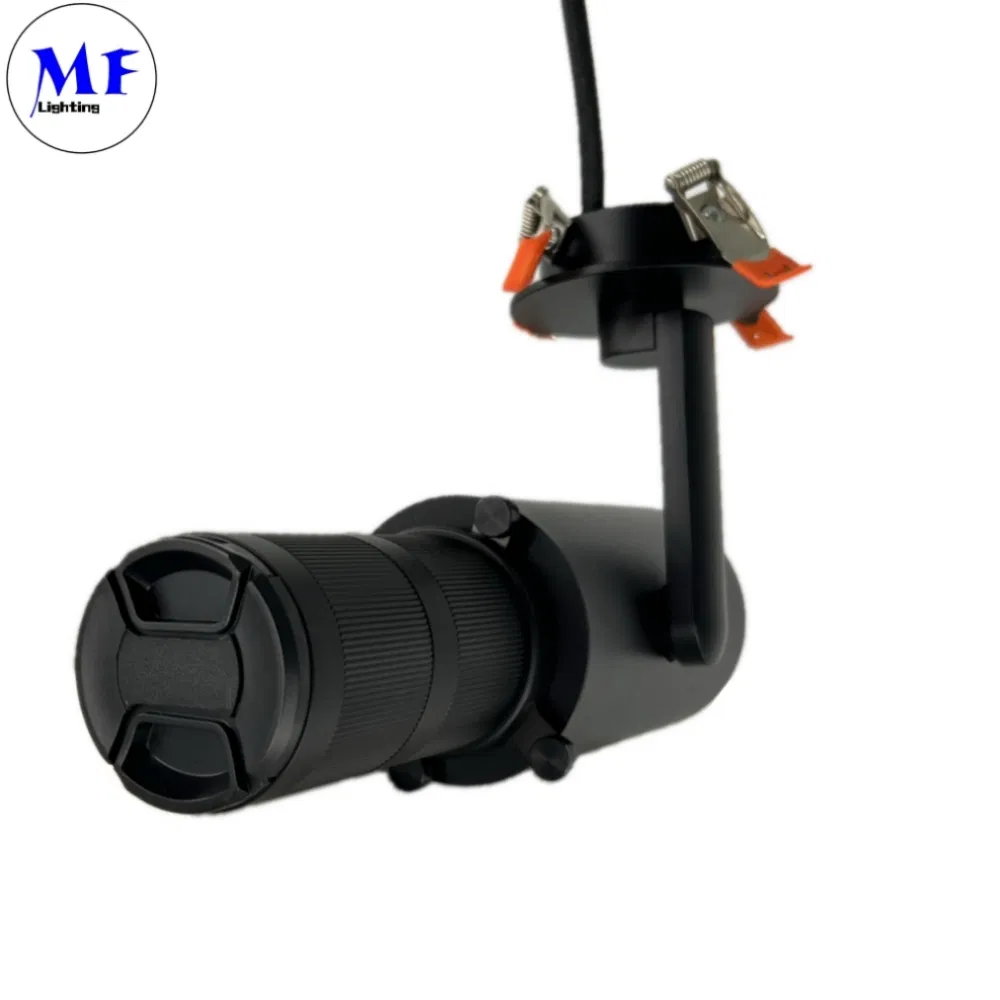

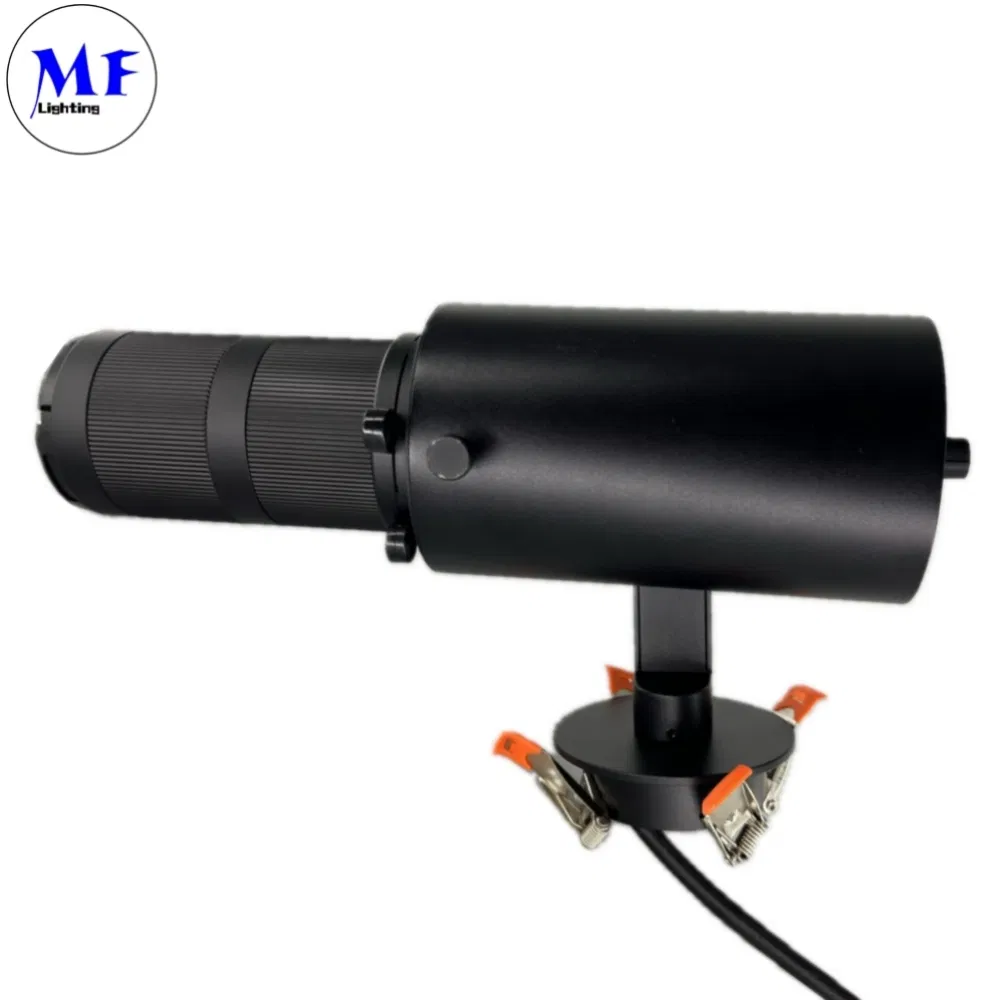

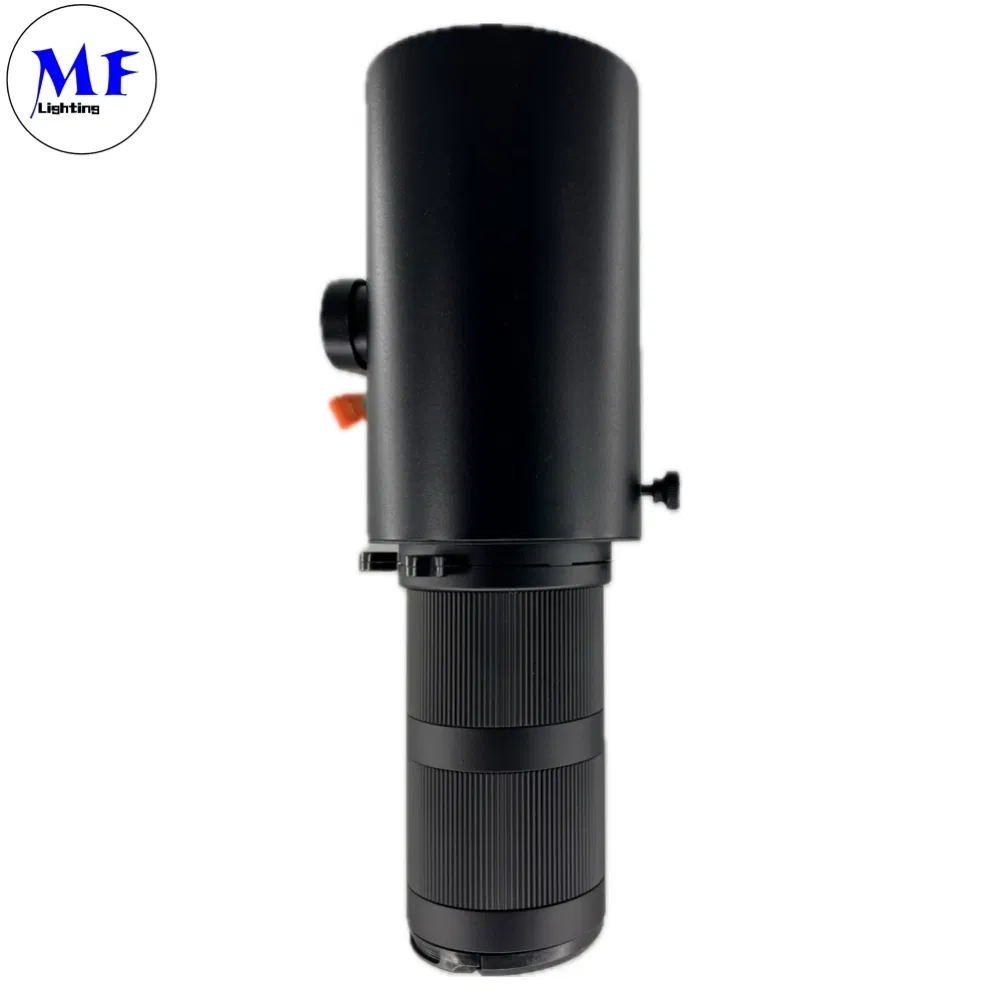

16yrs Manufacture 3years Warranty Indoor Track Lighting High CRI 97 10W 28W Shapeable Lamp Museum Art Surface Mount 2/3/4/6 Wires Logo Gobo LED Projector

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Indoor Track Lighting High CRI 97 10W 28W Shapeable Lamp

Power

10W/28W

Emitting Color

Changeable

Base Type

EU11/Customized

IP Rating

IP44

Certification

CE, ETL, RoHS, SAA

Input Voltage

AC 220V-240V/48V DC

LED Chips Brand

Osram

CRI(Ra)

≥97

Housing Color

Black/White

Warranty

2 years

Production Capacity

10000PCS Per Month

🌟

Product Features

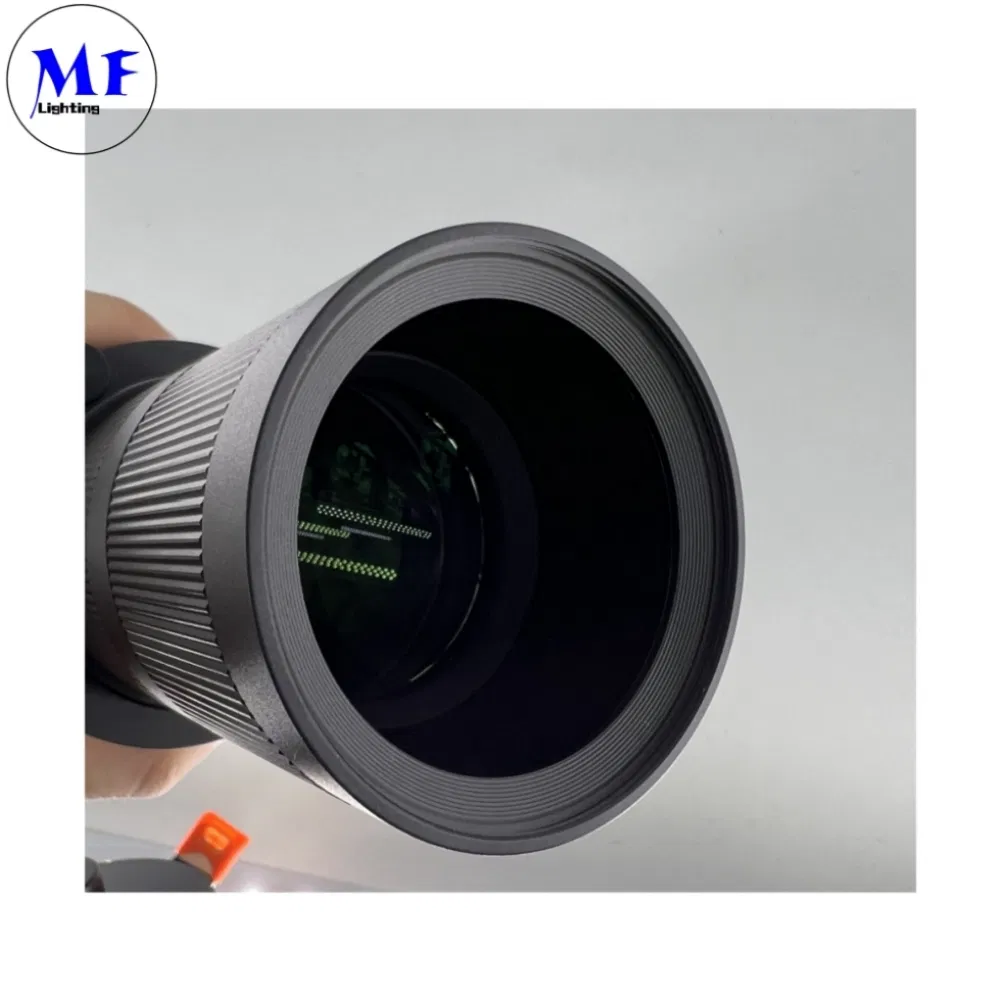

The KP series incorporates advanced optical engineering, featuring a newly developed 55° fixed-focus wide-angle lens and 15°~36° constant zoom lens. Its ultra-small size and magnetic compatibility make it an excellent choice for precision lighting.

Ultra-high-definition projection for crisp, clear visual impacts.
Millimeter-level precise spot shaping for uniform and professional illumination.
Versatile switching between fixed-focus and zoom lenses to maximize optical properties.

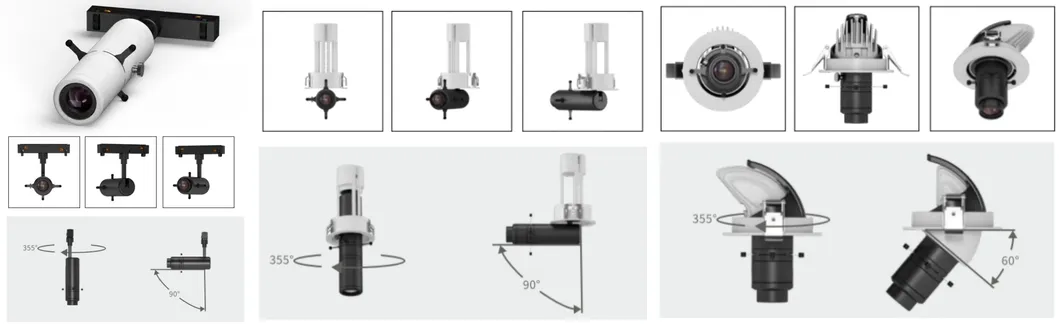

Flexible rotation: Vertical 60° and horizontal 355° for precise projection.
Dust-free performance across all focal lengths, ensuring no stray points or blue edges.

📋

Specifications

Model	Power	Luminous Flux	CRI (Ra)	Color Temp	Zoom Range	Weight	Housing
M1003K	10W	300~350LM	≥97	2700K-4000K	15°~36°	0.35Kg	Black/White
D1070K	10W	300~350LM	≥97	2700K-4000K	55°	0.49Kg	Black/White
G1075K	10W	300~350LM	≥97	2700K-4000K	15°~36°	0.49Kg	Black/White
G2095K	20W	850~900LM	≥97	2700K-4000K	15°~36°	0.35Kg	Black/White
G30125K	28W	1100~1300LM	≥97	2700K-4000K	15°~36°	0.35Kg	Black/White

⚙️

Control & Functions

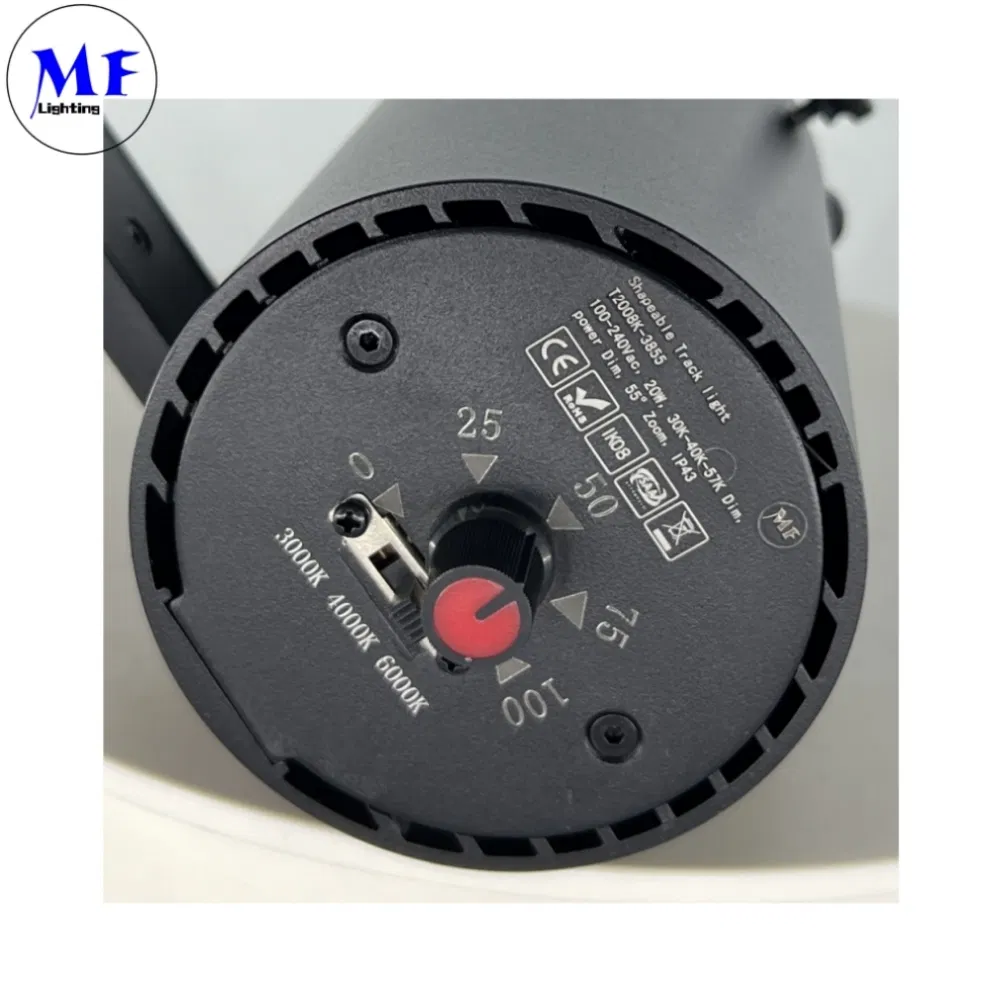

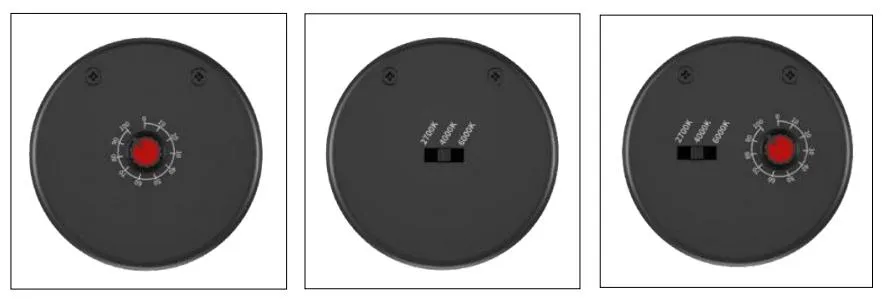

Module built-in driver control methods:

a. Single lamp 0-10V knob dimming module for continuous adjustment.

b. DIP select color temperature: 2700K / 3000K / 4000K / 5700K.

c. Combination of DIP CCT and 0-10V knob dimming.

📐

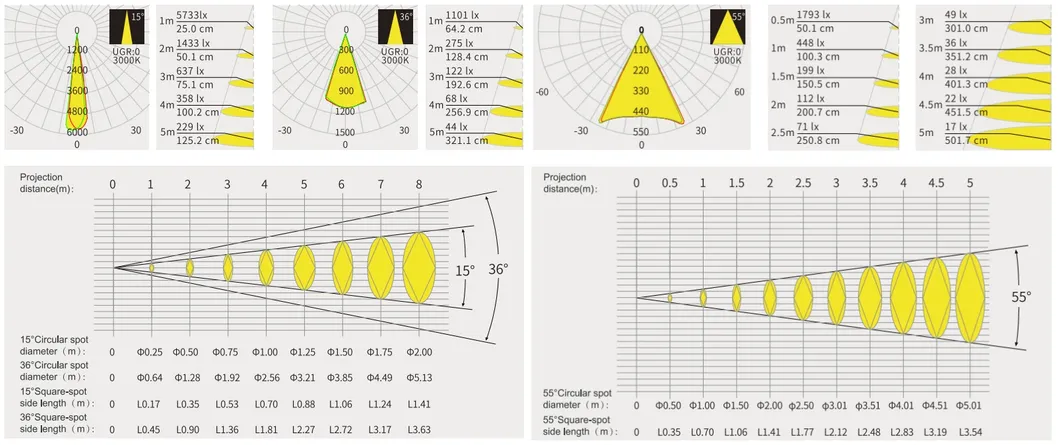

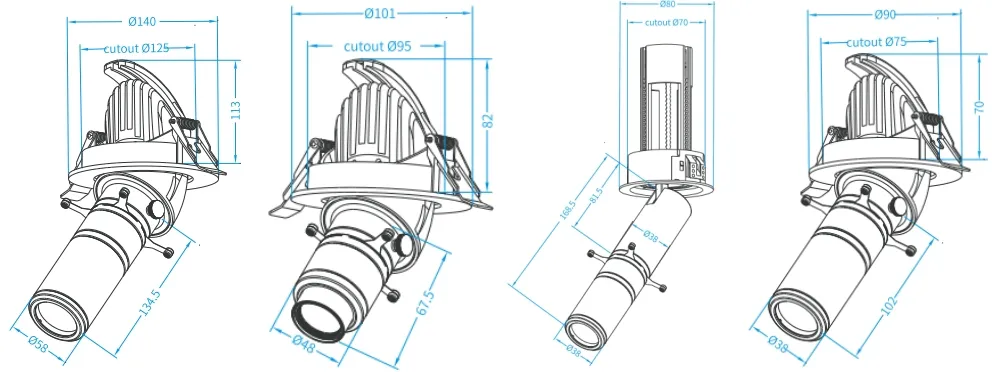

Dimensions & Photometry

🏛️

Applications

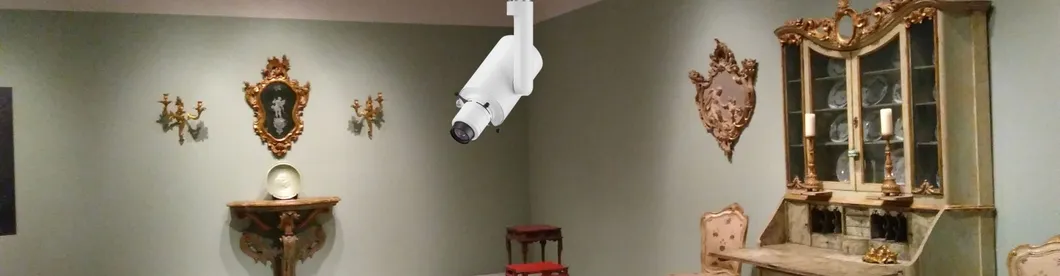

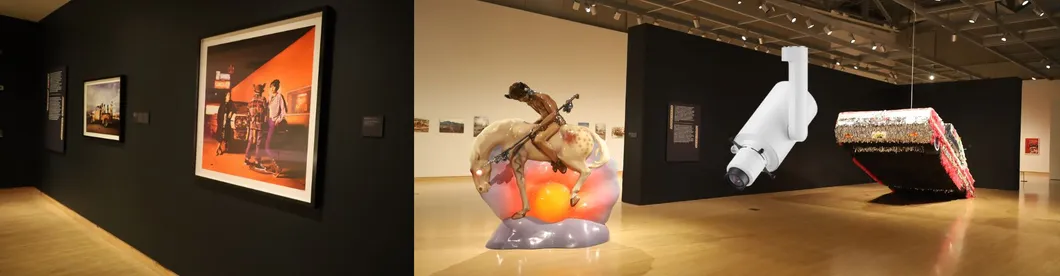

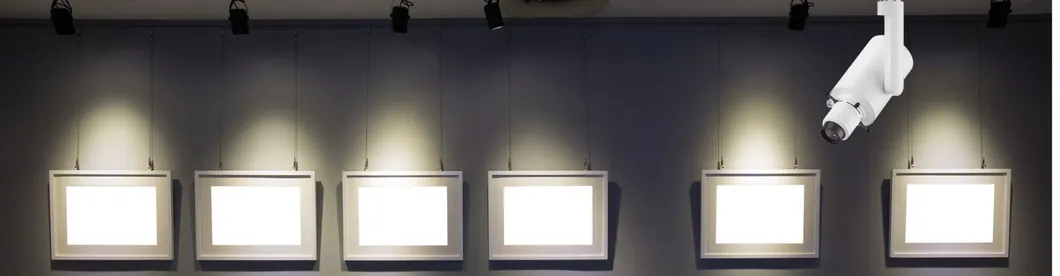

LED track lights find extensive application in galleries and art museums. They play a crucial role in illuminating artwork and exhibitions. The adjustable nature of these lights allows curators to precisely direct focus onto sculptures, photography, and classical masterpieces.

📦

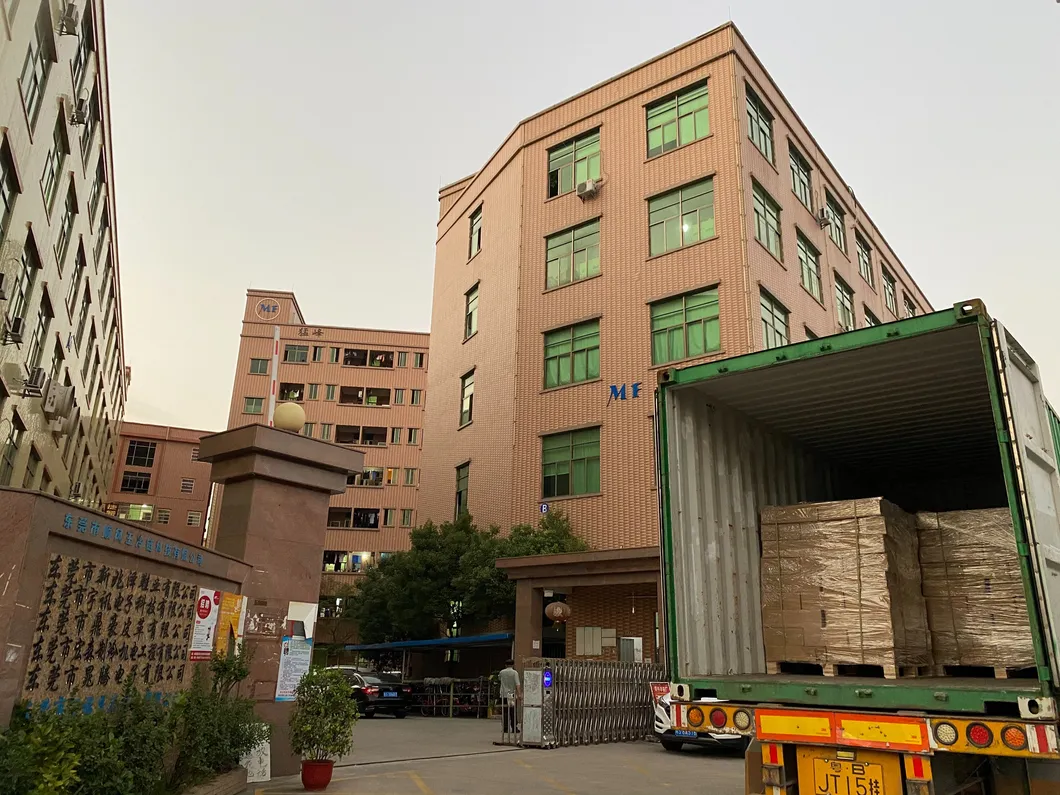

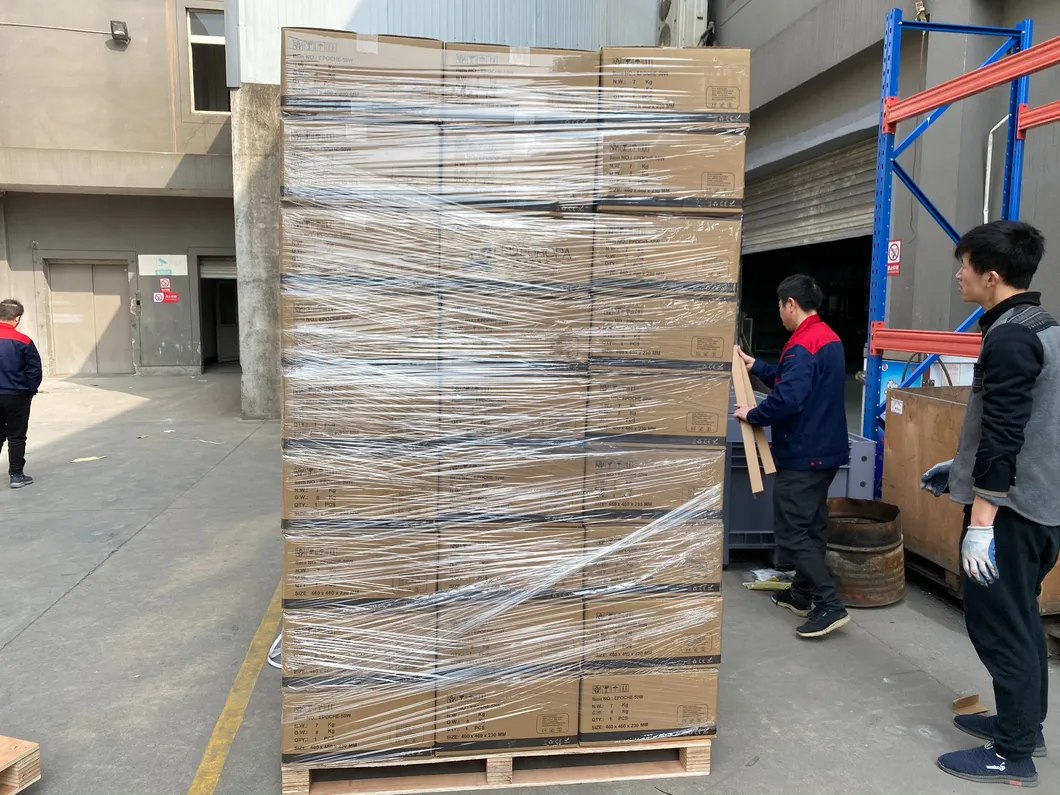

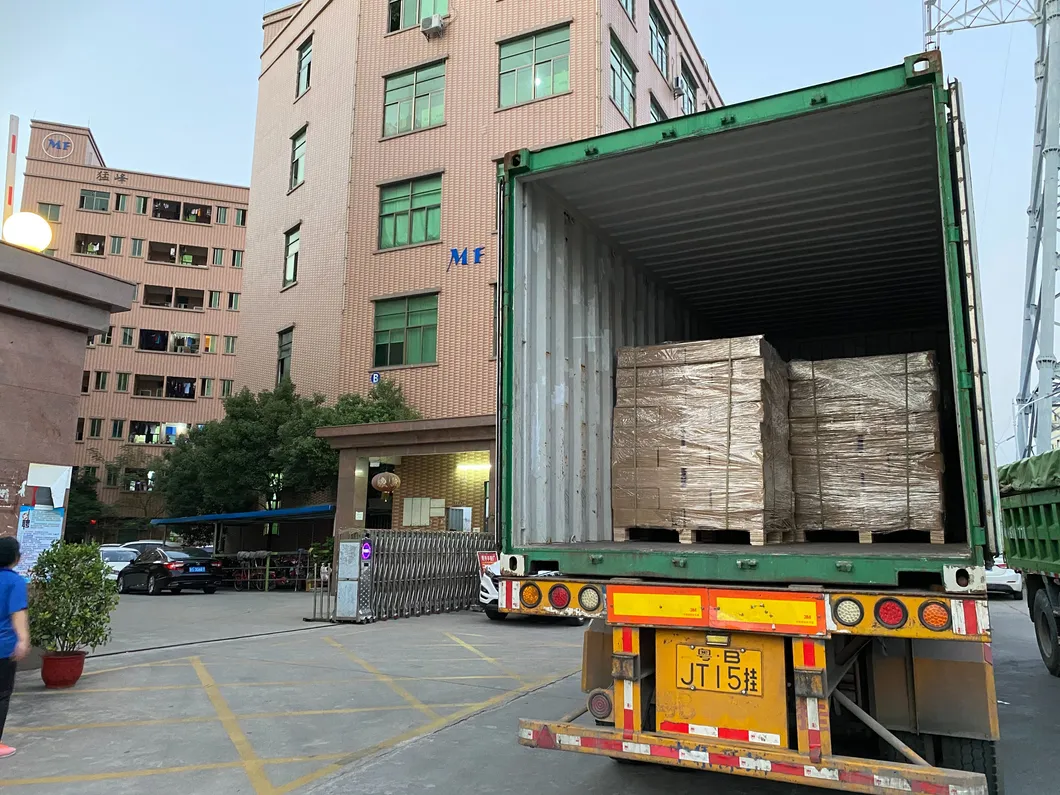

Packaging & Shipping

Frequently Asked Questions

What is the Color Rendering Index (CRI) of this projector?

The KP series offers a high CRI of Ra≥97, ensuring extremely accurate color representation for museum and art gallery applications.

Is the beam angle adjustable?

Yes, the KP series supports both a 55° fixed-focus wide-angle lens and a 15°~36° constant zoom optical lens for precise spot shaping.

What dimming options are available?

Support includes 0-10V knob dimming, DALI, Bluetooth (Tuya/Mijia), and Zigbee smart control systems.

Can this light rotate for different projection angles?

Absolutely. The light supports vertical 60° rotation and horizontal 355° rotation for flexible positioning.

Does the lens produce any stray light or blue edges?

No, the II generation optical system ensures dust-free focal lengths with no stray points, no distortion, and no blue edges.

What are the main installation types?

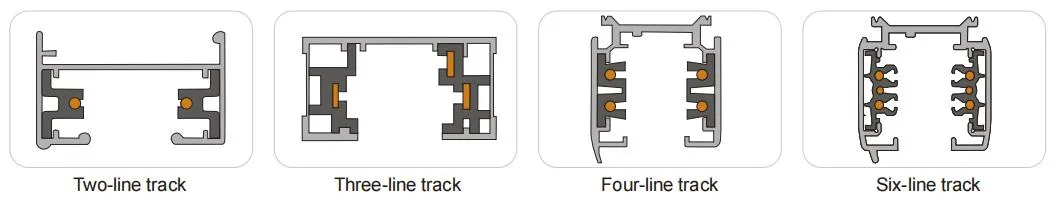

The series supports Magnetic track systems, Embedded (Cutout 40/70mm), Surface Mount, and Track Adapter installations.
