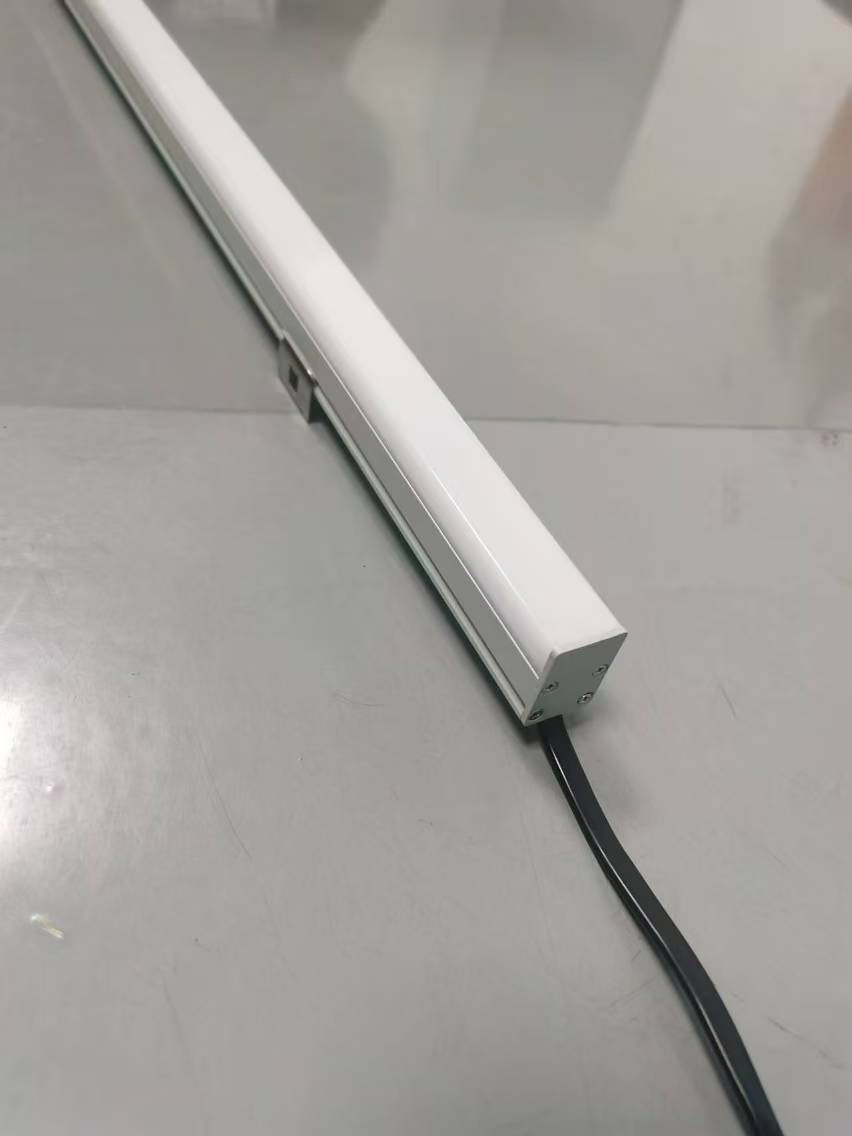

Waterproof Modern Exterior Lighting Fixture 3000K/4000K Linear Outdoor Light Decorative Lamp

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
JML-X22HL-XM
IP Rating
IP66
Beam Angle
120°
Lifespan
50000 hours
Warranty
3 Years
Input Voltage
DC 24V
Material
Aluminum Alloy
Light Source
5050/0.3W 2835/0.2W
Control Method
DMX512
Certification
CE, RoHS

Product Overview

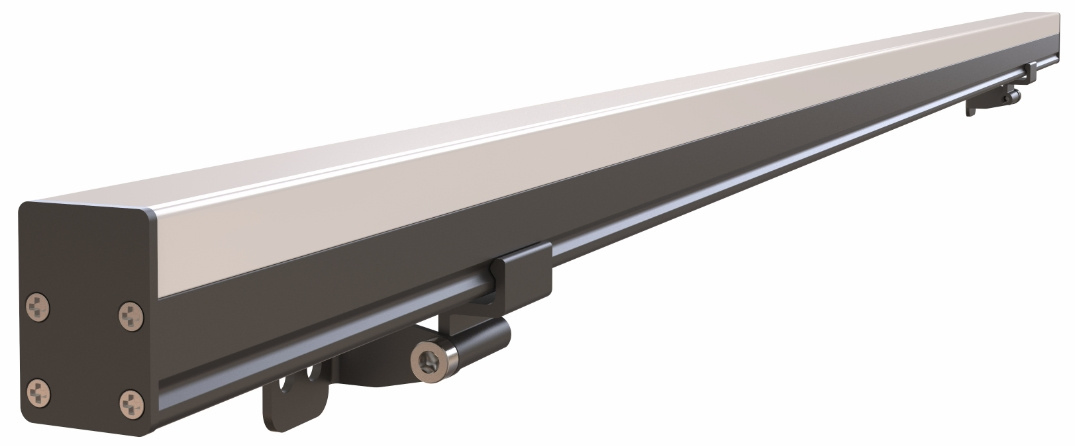

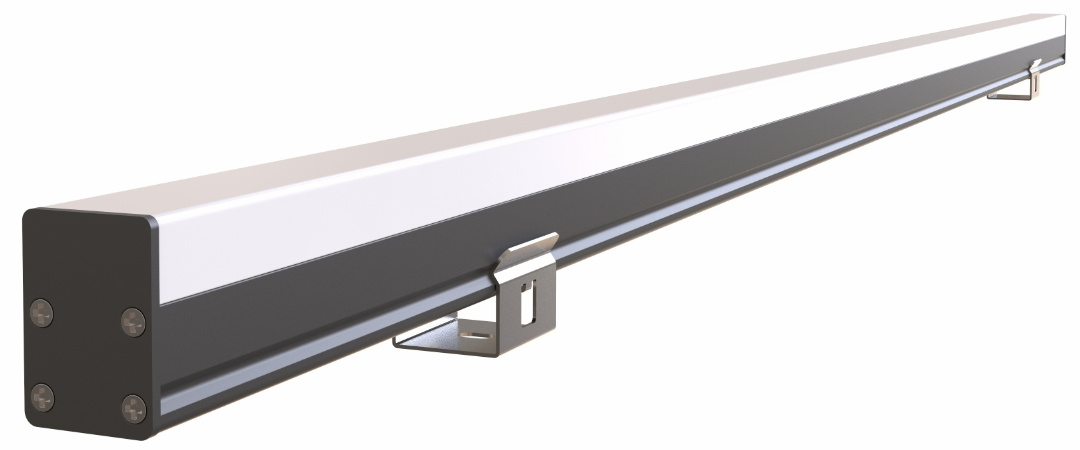

Outdoor Architectural Landscape DMX512 Modern Metal Linear Wall Mounted Lamp (12W/15W)

Linear Outdoor Light
Exterior Lighting Fixture

Product Features

  • Modern aluminum design for durability
  • Low thermal resistance paths for superior heat dissipation
  • Waterproof design with fully sealed thermal conductive silicone
  • Thermoelectric separation technology
  • Advanced outdoor lightening and ESD protection
  • Wide operating temperature: -20ºC to 50ºC

Technical Drawings & Details

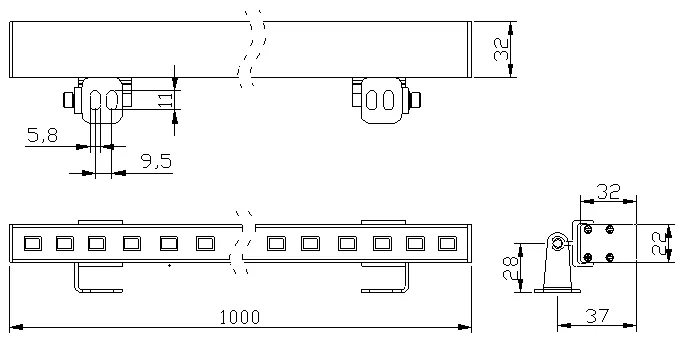

Dimensional Drawing:

Dimensional Drawing

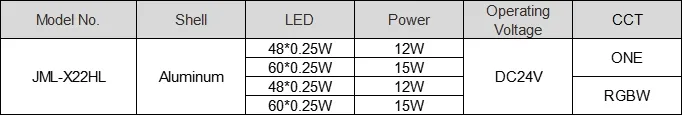

Specifications Table:

Specifications

Case Study & Application

Case Show Product Application Technical Details

Frequently Asked Questions

What is the IP rating of this linear wall lamp?
The lamp is rated IP66, making it fully protected against dust and powerful water jets, ideal for outdoor architectural use.
What control methods are supported for color changing?
This model supports the DMX512 controlling method, allowing for precise color and pattern management.
What is the expected lifespan and warranty?
The LED source has a lifespan of approximately 50,000 hours, and the product comes with a 3-year warranty.
Which colors are available for this light?
It is available in RGB, RGBW, Day White, Warm White, and Yellow options.
Can I request a sample order?
Yes, sample orders are welcome to test and check the quality. Mixed samples are also acceptable.
How is the heat dissipation managed?
The lamp features an aluminum body with low thermal resistance paths and high thermal conductive silicone to ensure efficient cooling.
