| Model NO. | Black Busbar Ribbon | Material | Cu + Sn + Pb (Tin-Coated) |
| Application | Multi-Busbar Modules | Material Grade | TU1 (High Purity Copper) |
| Composition | Cu >= 99.97% | Resistivity | <= 0.01725 Ω.mm²/m |
| Elongation | >= 25% | Yield Strength | 75-125 MPa |
| Tensile Strength | >= 170 MPa | Bending Strength | <= 4.0mm/M |

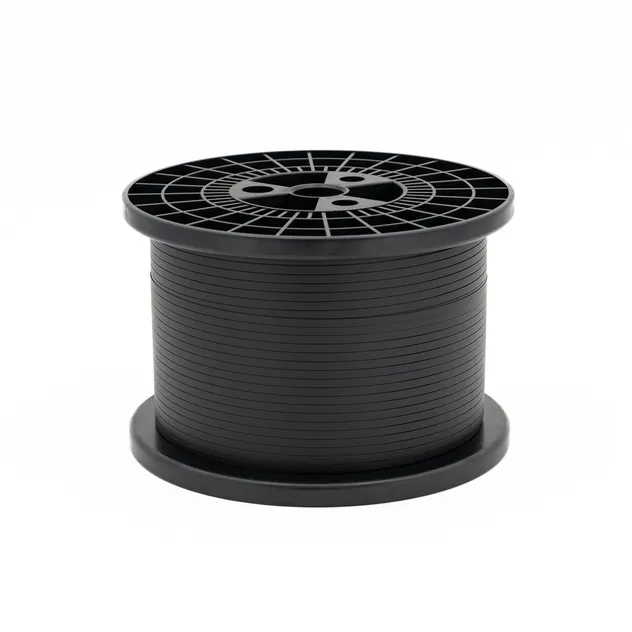

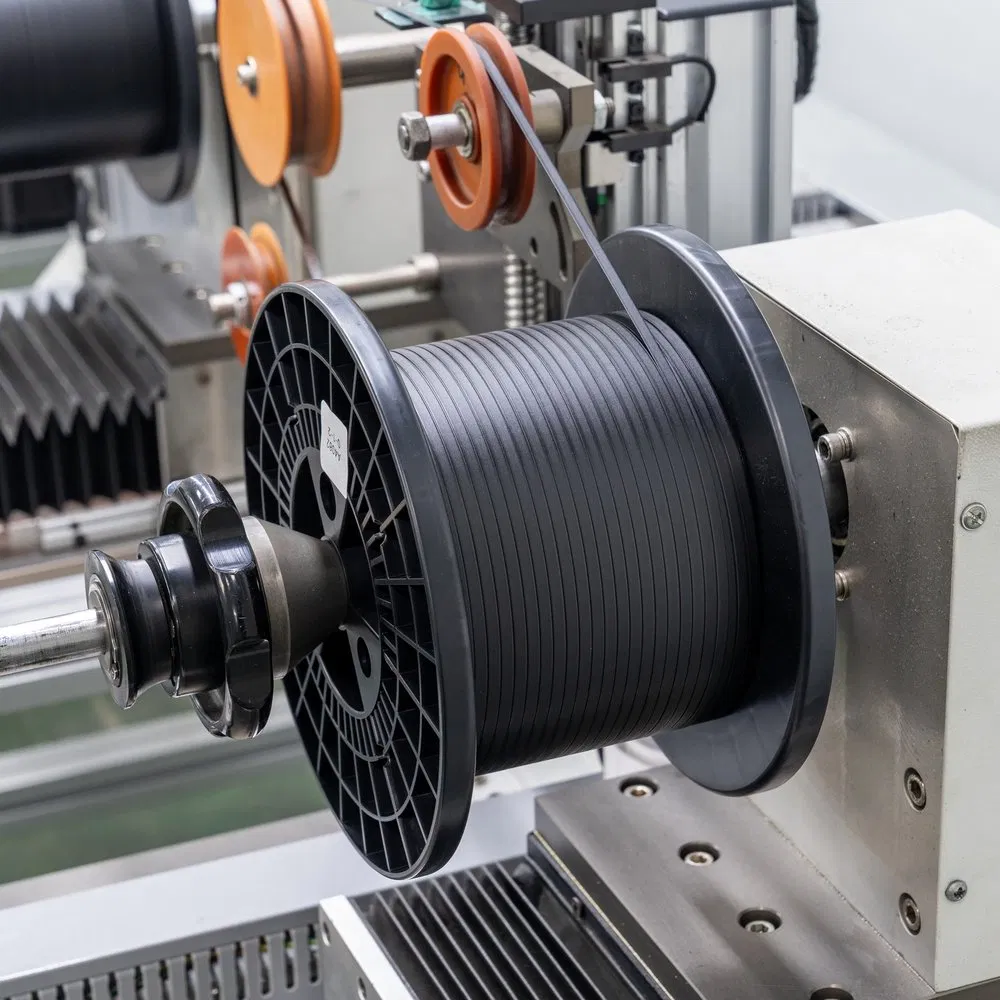

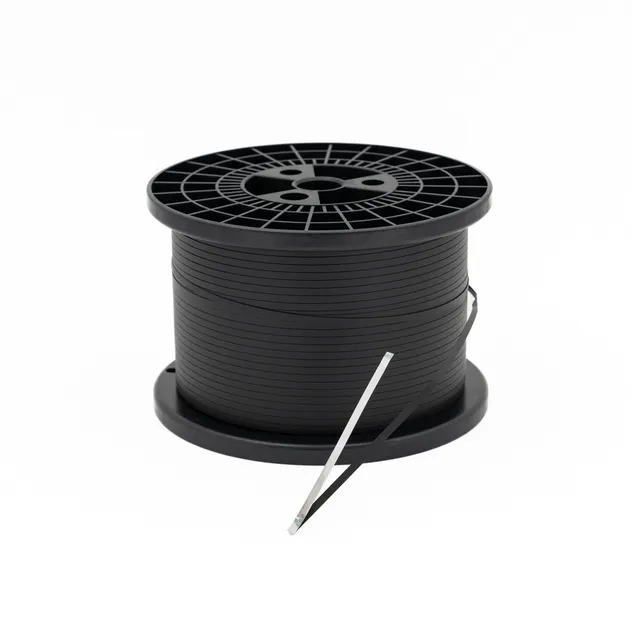

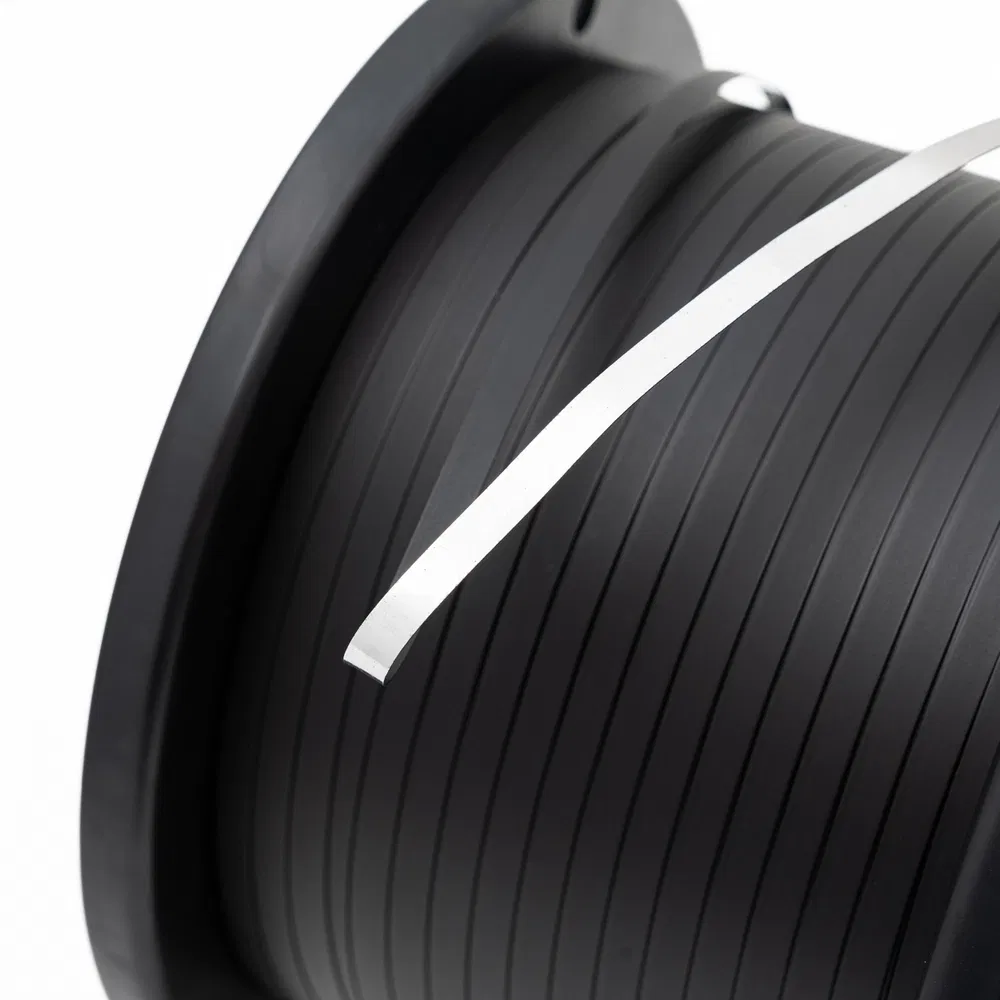

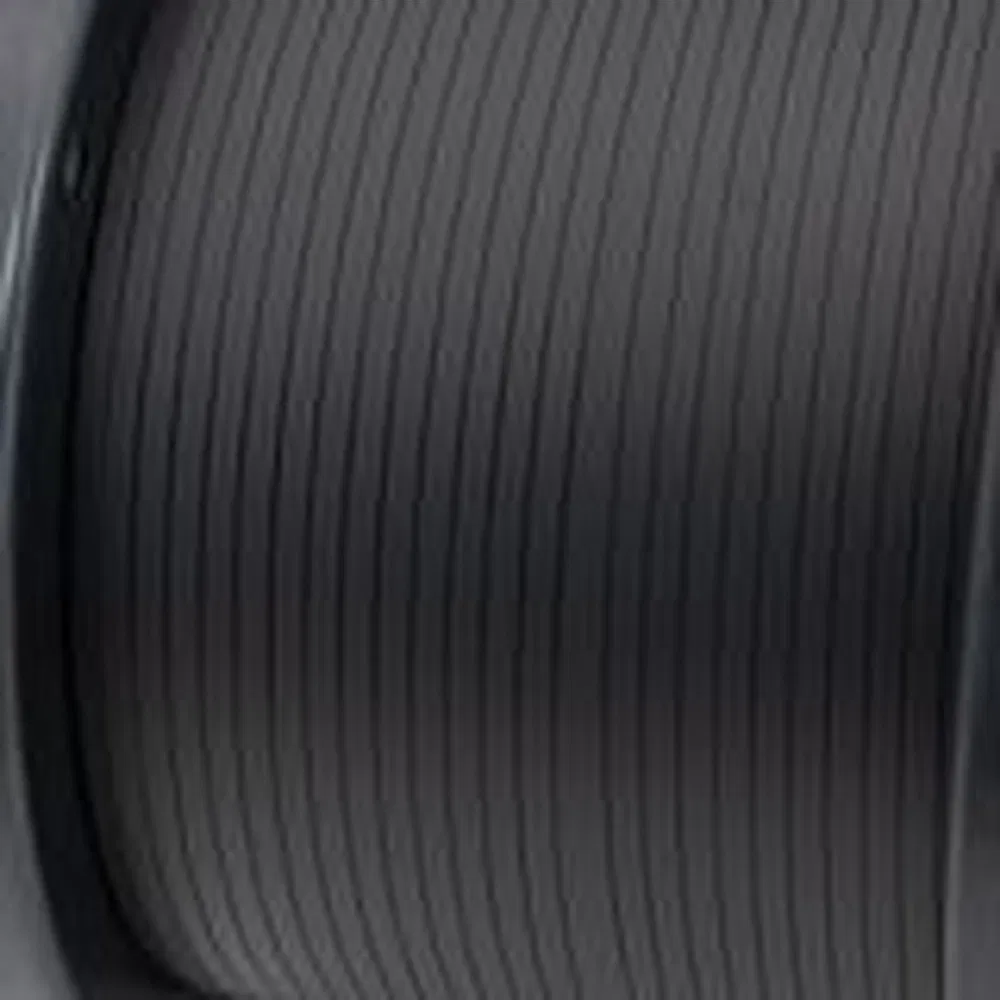

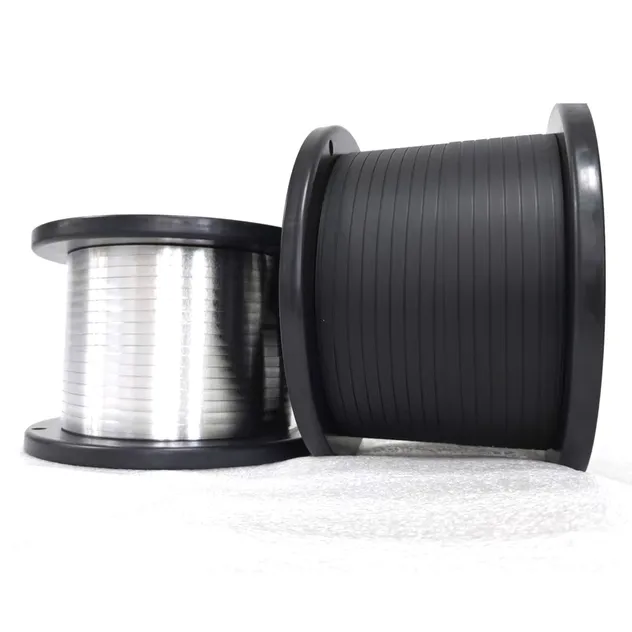

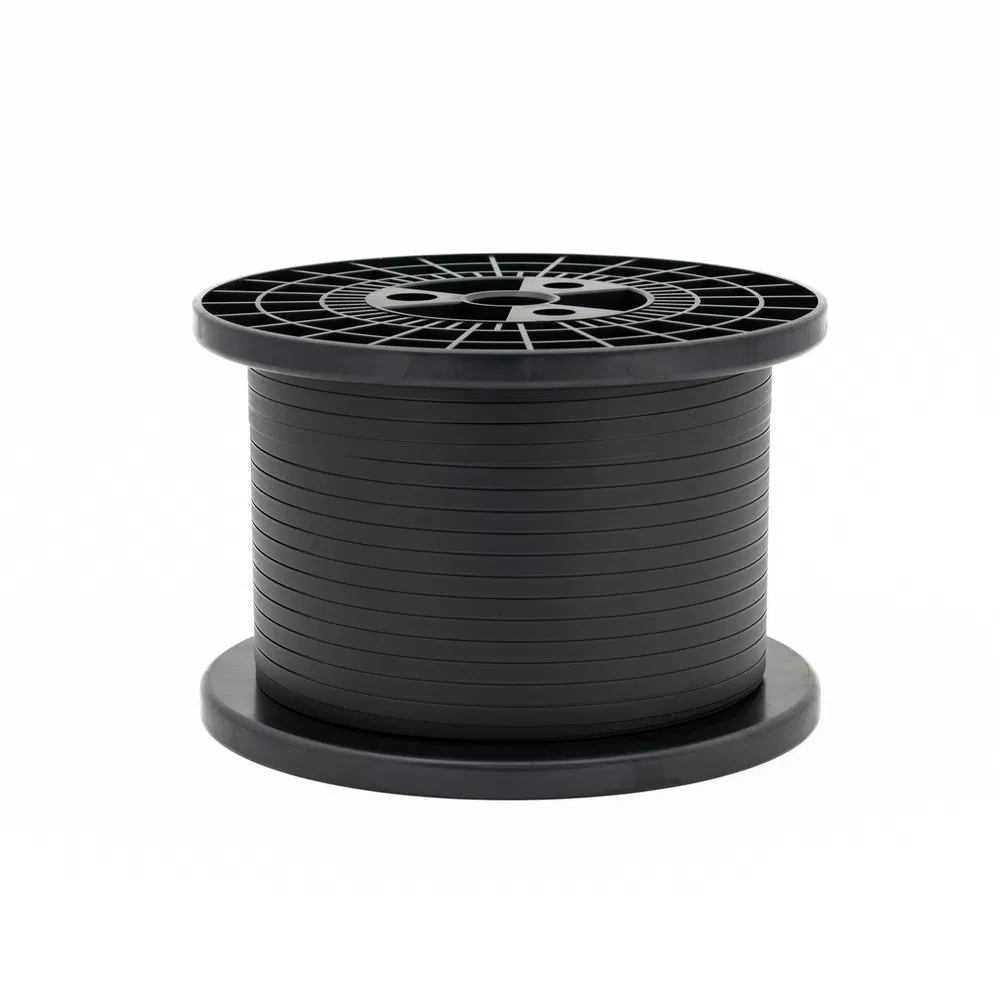

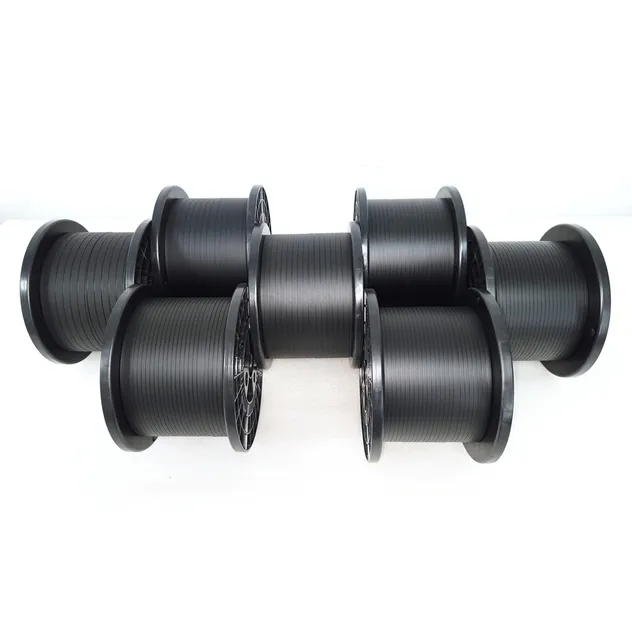

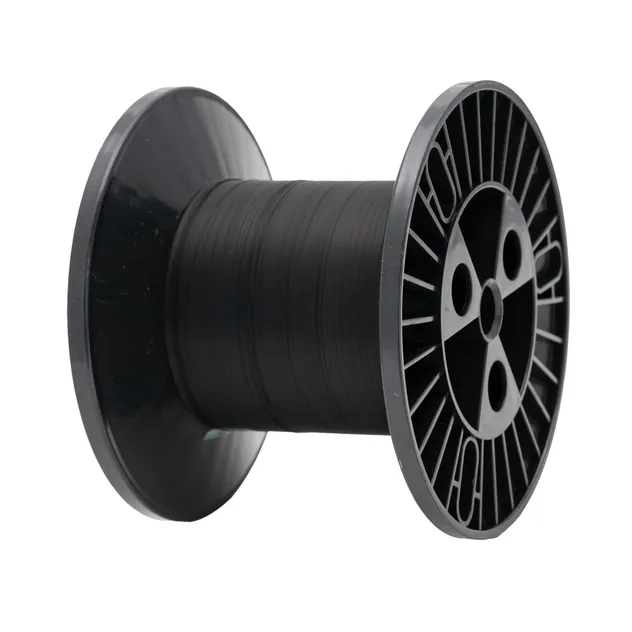

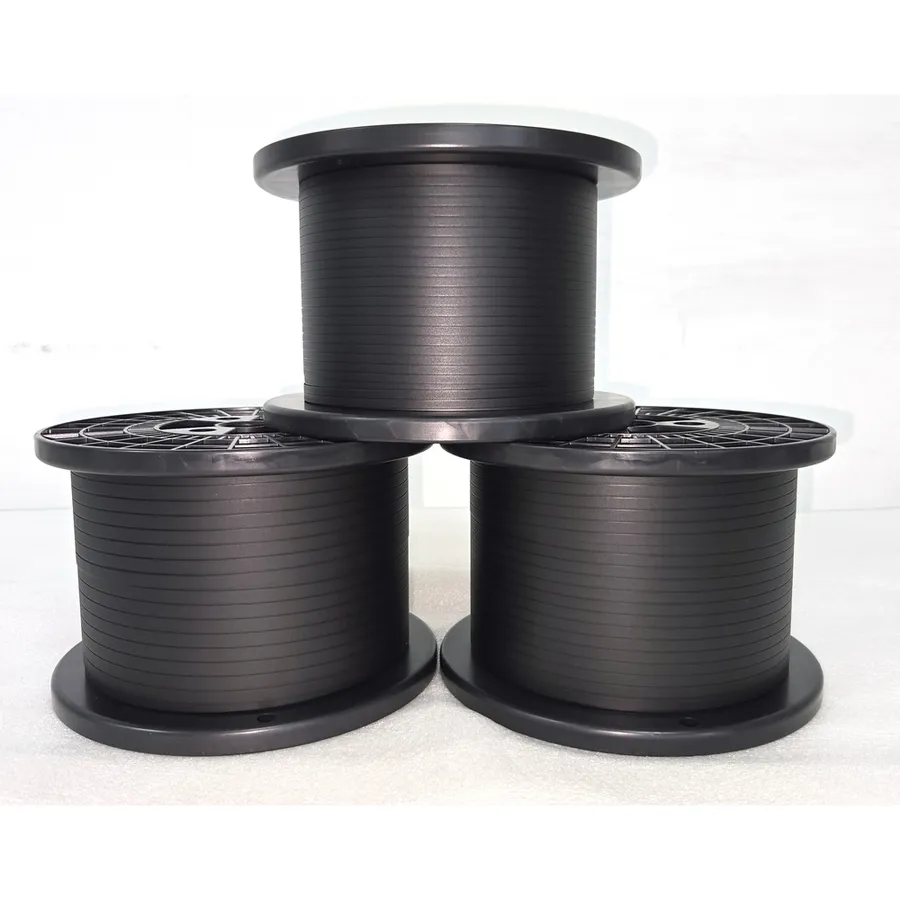

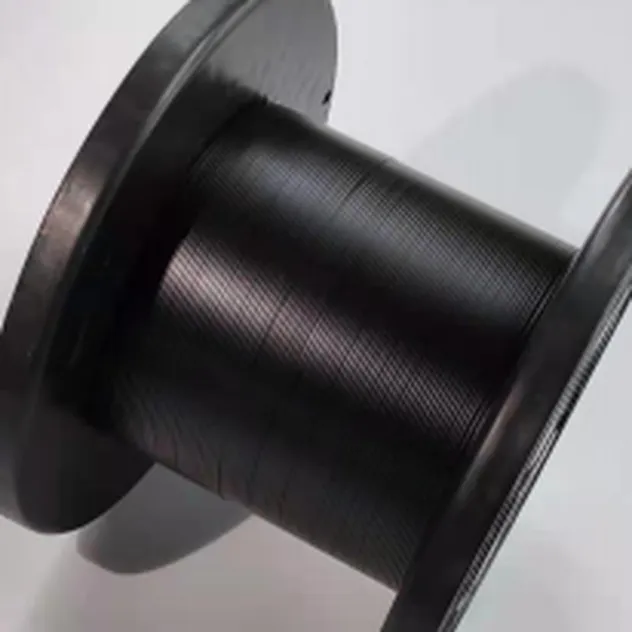

This is a critical component within a photovoltaic module, used to connect the solar cells. Made of a special black material, it offers a more uniform and aesthetically pleasing appearance compared to traditional bus ribbons. Its structure typically consists of a conductor and an insulating layer.
The conductor conducts current and is typically made of high-purity copper to ensure good conductivity. The black insulating material not only provides excellent insulation but also complements the overall design of the all-black module.
Perfect for BIPV applications. Blends seamlessly with architectural styles, adding technology and beauty to buildings.
Excellent electrical conductivity, effectively conducting current and minimizing energy loss for high efficiency.
UV, moisture, and corrosion resistant. Stable operation in harsh environments like high heat and dust.
| PV BLACK RIBBON SIZE OPTIONS (mm) | |||||
|---|---|---|---|---|---|
| Product | 0.15 * W | 0.20 * W | 0.25 * W | 0.30 * W | 0.35 * W |
| PV Black Ribbon | 0.15 * 4 | 0.2 * 4 | 0.25 * 4 | 0.3 * 4 | 0.35 * 4 |
| 0.15 * 5 | 0.2 * 5 | 0.25 * 5 | 0.3 * 5 | 0.35 * 5 | |
| 0.15 * 6 | 0.2 * 6 | 0.25 * 6 | 0.3 * 6 | 0.35 * 6 | |
| 0.15 * 7 | 0.2 * 7 | 0.25 * 7 | 0.3 * 7 | 0.35 * 7 | |
| 0.15 * 8 | 0.2 * 8 | 0.25 * 8 | 0.3 * 8 | 0.35 * 8 | |
Building-Integrated Photovoltaics (BIPV): Black busbar ribbon helps modules blend into roofs and walls, meeting aesthetic demands for high-end landmarks.
High-End Landscape Projects: Perfect for awnings and pavilions in scenic areas where pure black appearance avoids visual dissonance.
Green Building Concepts: Aligns with modern architectural pursuit of environmental protection and sustainable development.
